Spiral Cable: Removal and Installation: Installation
Installation is in the reverse order of removal.

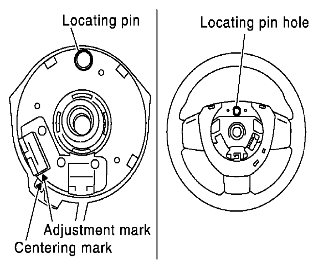

- Align spiral cable correctly when installing steering wheel, refer to [STEERING WHEEL: REMOVAL AND INSTALLATION ] Make sure that the spiral cable is in the neutral position. The neutral position is detected by turning left 2.5 revolutions from the right end position and ending with the locating pin at the top.
- Reset the steering angle sensor calibration after installing spiral cable. Refer to appropriate ANTILOCK BRAKE SYSTEM (ABS) article.
- After the work is completed, perform self-diagnosis to make sure no malfunction is detected. Refer to
[SRS OPERATION CHECK ].CAUTION:
- The spiral cable may snap due to steering operation if the cable is not installed in the correct position.
- With the steering linkage disconnected, the cable may snap by turning the steering wheel beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from the neutral position.
