Driver Air Bag Module: Removal and Installation: Removal

CAUTION:

Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver air bag direct-connect harness connector is damaged, the spiral cable must be replaced.
Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at least three minutes.
When servicing the SRS, do not work from directly in front of air bag module.

Disconnect the negative and positive battery terminals, then wait at least three minutes.
Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.
NOTE: Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering wheel, SRS components may be unintentionally damaged.

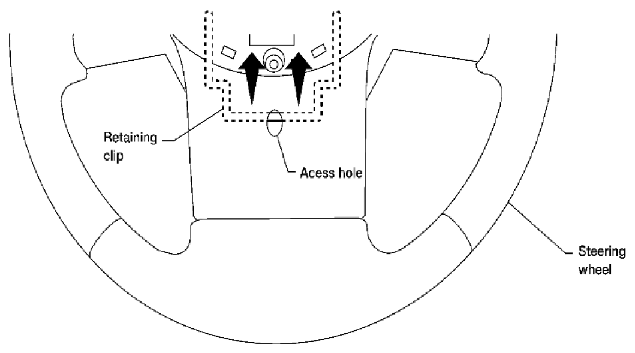

Fig 1: Identifying Retaining Clip And Steering Wheel
Courtesy of SUZUKI OF AMERICA CORP.
Press upward (toward center of steering wheel) on retaining clip until driver air bag module is released from steering wheel.
Lift the driver air bag module from the steering wheel.
Disconnect the driver air bag module and horn connectors, then remove the driver air bag module.
- For removal/installation of the direct-connect SRS connectors, refer to [DIRECT-CONNECT SRS COMPONENT CONNECTORS DESCRIPTION ].
CAUTION:
- When servicing the SRS, do not work from directly in front of air bag module.
- Always place air bag module with pad side facing upward.

  Fig 2: Caution For Placing Air Bag Module With Pad Side Facing Upward
  Courtesy of SUZUKI OF AMERICA CORP.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module or connectors.
- Do not disassemble air bag module.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Replace the air bag module if it has been dropped or sustained an impact.

  Fig 3: Caution For Air Bad Module Handling
  Courtesy of SUZUKI OF AMERICA CORP.
- Do not allow oil, grease or water to come in contact with the air bag module.
