Diagnosis Sensor Unit: Removal and Installation: Removal

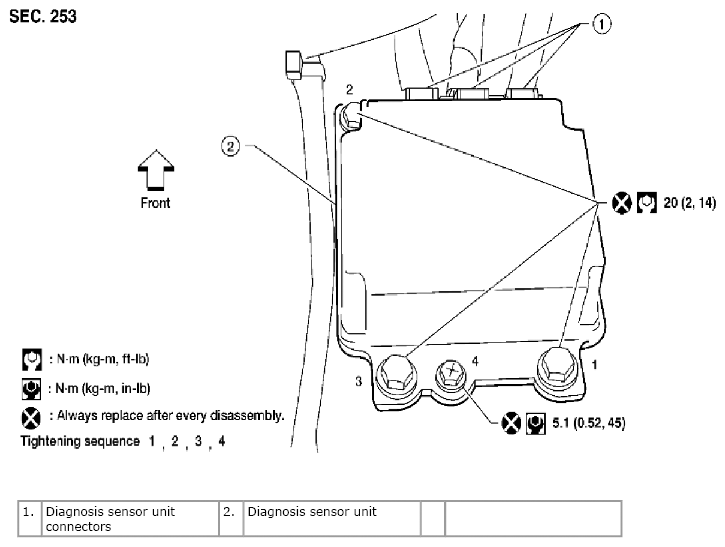

Fig 1: Identifying Diagnosis Sensor Unit With Connectors

Courtesy of SUZUKI OF AMERICA CORP.

WARNING:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at least three minutes.
• Do not use old bolts; replace with new bolts.
• Check diagnosis sensor unit bracket to make sure it is free of deformities, dents, cracks or rust. If it shows any visible signs of damage, replace with new one.
• Replace diagnosis sensor unit if it has been dropped or sustained an impact.
• Never use air tools or electric tools for servicing.
• When replacing the air bag diagnosis sensor unit, always check with the parts department for the latest parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags and seat belt pre-tensioner in a collision resulting in serious personal injury or death.

1. Always check the air bag diagnosis sensor unit C/U identification number using SDT.
2. Disconnect the negative and positive battery terminals, then wait at least three minutes.
3. Disconnect the harness connectors for the following SRS components: Refer to [Side Curtain Air Bag Module: Removal and Installation ] (Side curtain air bag module), [Front Seat Belt Pre-Tensioner: Removal and Installation ] (Front seat belt pre-tensioner), [FRONT SEAT: SEATBACK ASSEMBLY ] (Side air bag module).
4. Remove center console. Refer to [INSTRUMENT PANEL ASSEMBLY: REMOVAL AND INSTALLATION ]
5. Disconnect diagnosis sensor unit connectors.
6. Remove bolts from the diagnosis sensor unit.
   CAUTION:

   • Do not use old bolts; replace with new bolts.
   • Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it shows any visible signs of damage, replace with new one.
   • Replace diagnosis sensor unit if it has been dropped or sustained an impact.
