Crash Zone Sensor: Removal and Installation: Removal

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at least three minutes.

Disconnect the negative and positive battery terminals, then wait at least three minutes.
Remove crash zone sensor nuts and shield from support member.

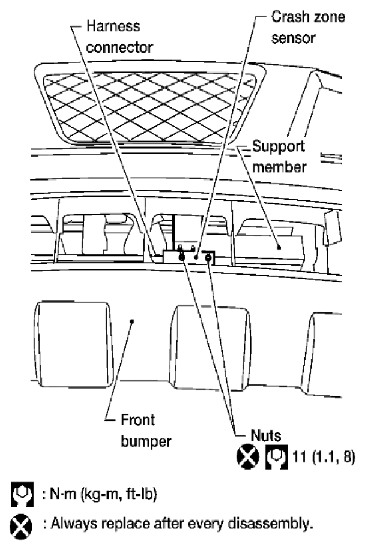

Fig 1: Identifying Front Bumper, Crash Zone Sensor, Support Member And Harness Connector
Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the crash zone sensor harness connector.
Remove crash zone sensor.
CAUTION:
- Replace crash zone sensor if it has been dropped or sustained an impact.
- Do not disassemble crash zone sensor.
