SRS Configuration
The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or START position.
The collision modes for which supplemental restraint systems are activated are different among the SRS systems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tensioners are activated in a frontal collision but not in a side collision.

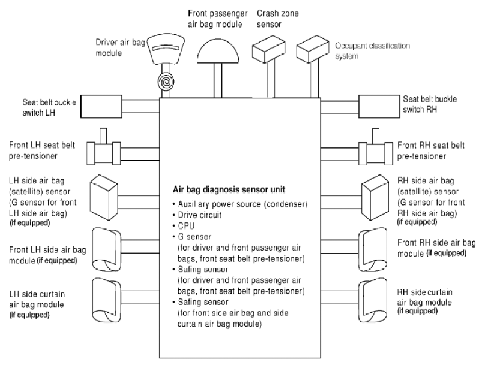

SRS configurations for some collision modes are as follows:
SRS CONFIGURATION REFERENCE CHART
| SRS configuration | Frontal collision | Left side collision | Right side collision | Rollover |
|---|---|---|---|---|
| Driver air bag module | x | - | - | - |
| Front passenger air bag module | x | - | - | - |
| Front LH seat belt pre-tensioner | x | - | - | x |
| Front RH seat belt pre-tensioner | x | - | - | x |
| Front LH side air bag module (if equipped) | - | x | - | - |
| Front RH side air bag module (if equipped) | - | - | x | - |
| LH side curtain air bag module (if equipped) | - | x | - | x |
| RH side curtain air bag module (if equipped) | - | - | x | x |
