Passenger Seat Belt Warning System: System Description

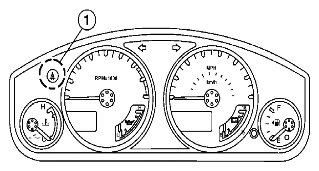

The passenger seat belt warning system will remind the driver if the driver or front passenger seat belt should be buckled by turning on the seat belt warning light (1). The system works in conjunction with the occupant classification system. Refer to [OCCUPANT CLASSIFICATION SYSTEM (OCS) DESCRIPTION ].
Passenger Seat Belt Warning System Operation
PASSENGER SEAT BELT WARNING SYSTEM OPERATION CHART
| Driver seat status (Ignition switch ON) | Passenger seat status | Seat belt buckle switch LH status | Seat belt buckle switch RH status | Seat belt warning lamp |
|---|---|---|---|---|
| Seat occupied | Seat occupied | Buckled | Buckled | Off |
| Unbuckled | On | |||
| Seat unoccupied | - | Off | ||
| - | Unbuckled | On |
