Special Service Tool

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description
KV10115801 (J-38956) Oil filter cap wrench	Courtesy of SUZUKI OF AMERICA CORP.	Removing and installing oil filter 64.3 mm (2.531 in)
KV991J0010 (J-23688) Engine coolant refractometer	Courtesy of SUZUKI OF AMERICA CORP.	Checking concentration of ethylene glycol in engine coolant
KV991J0070 (J-45695) Coolant refill tool	Courtesy of SUZUKI OF AMERICA CORP.	Filling cooling system

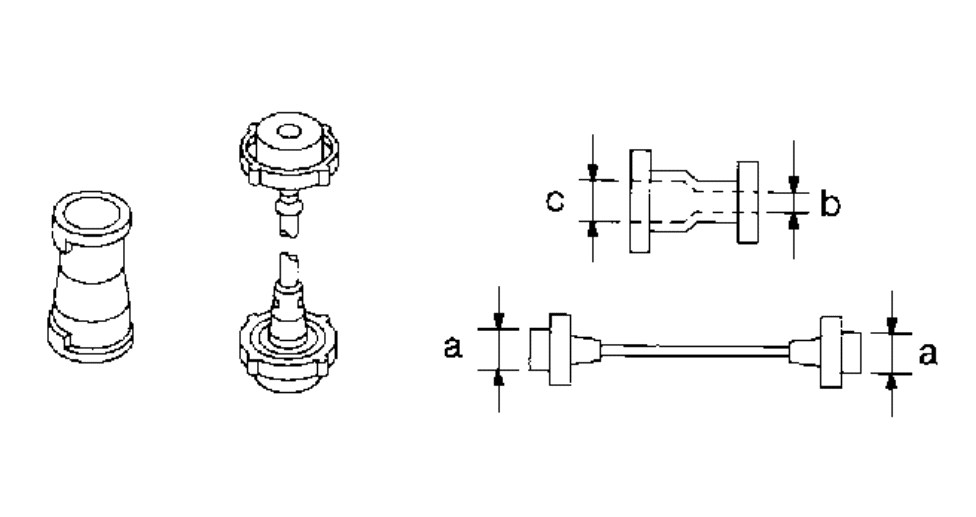

EG17650301 (J-33984-A) Radiator cap tester adapter	Courtesy of SUZUKI OF AMERICA CORP.	Adapting radiator cap tester to radiator cap and radiator filler neck a: 28 (1.10) dia. b: 31.4 (1.236) dia. c: 41.3 (1.626) dia. Unit: mm (in)

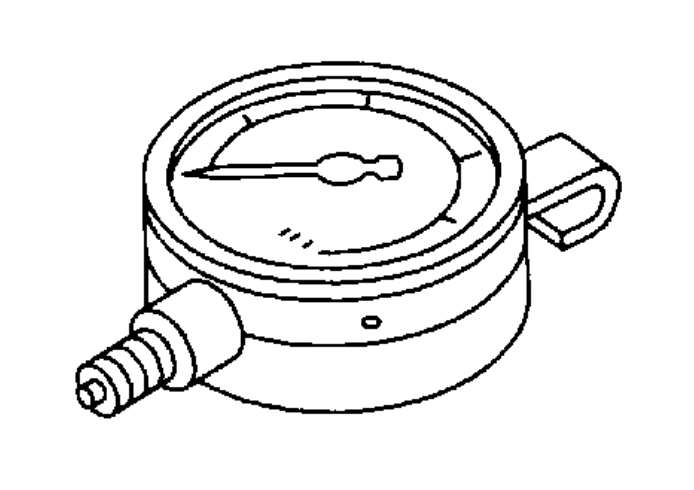

ST25051001 (J-25695-1) Oil pressure gauge	Courtesy of SUZUKI OF AMERICA CORP.	Measuring oil pressure Maximum measuring range: 2, 452 kPa (25 kg/cm2, 356 psi)
