Fluid Leakage And Fluid Level
- Make sure that fluid is not leaking from the transfer assembly or around it.

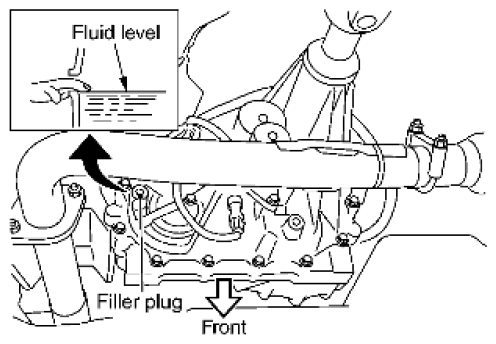

- Check fluid level from the filler plug hole as shown.
CAUTION: Do not start engine while checking fluid level.
- Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to
[TRANSFER ASSEMBLY: DISASSEMBLY AND ASSEMBLY
]CAUTION: Do not reuse gasket.
