Front Air Control: Removal

Remove the A/T finisher. Refer to [A/T FINISHER ].
Remove the cup holder.
Remove cluster lid C. Refer to [INSTRUMENT PANEL ASSEMBLY: EXPLODED VIEW ]
Remove the front air control from cluster lid C.
- For type 1, remove the four screws (A) securing the front air control (1) to cluster lid C.

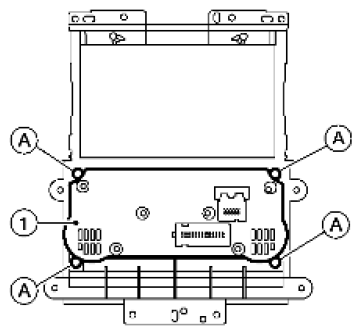

  Fig 1: Identifying Front Air Control, Cluster Lid C And Screws
  Courtesy of SUZUKI OF AMERICA CORP.
- For type 2, remove the four screws securing the front air control to cluster lid C.

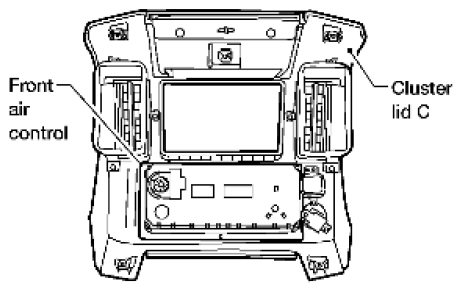

  Fig 2: Identifying Front Air Control, Cluster Lid C And Screws
  Courtesy of SUZUKI OF AMERICA CORP.
