O-Ring And Refrigerant Connection: Notes

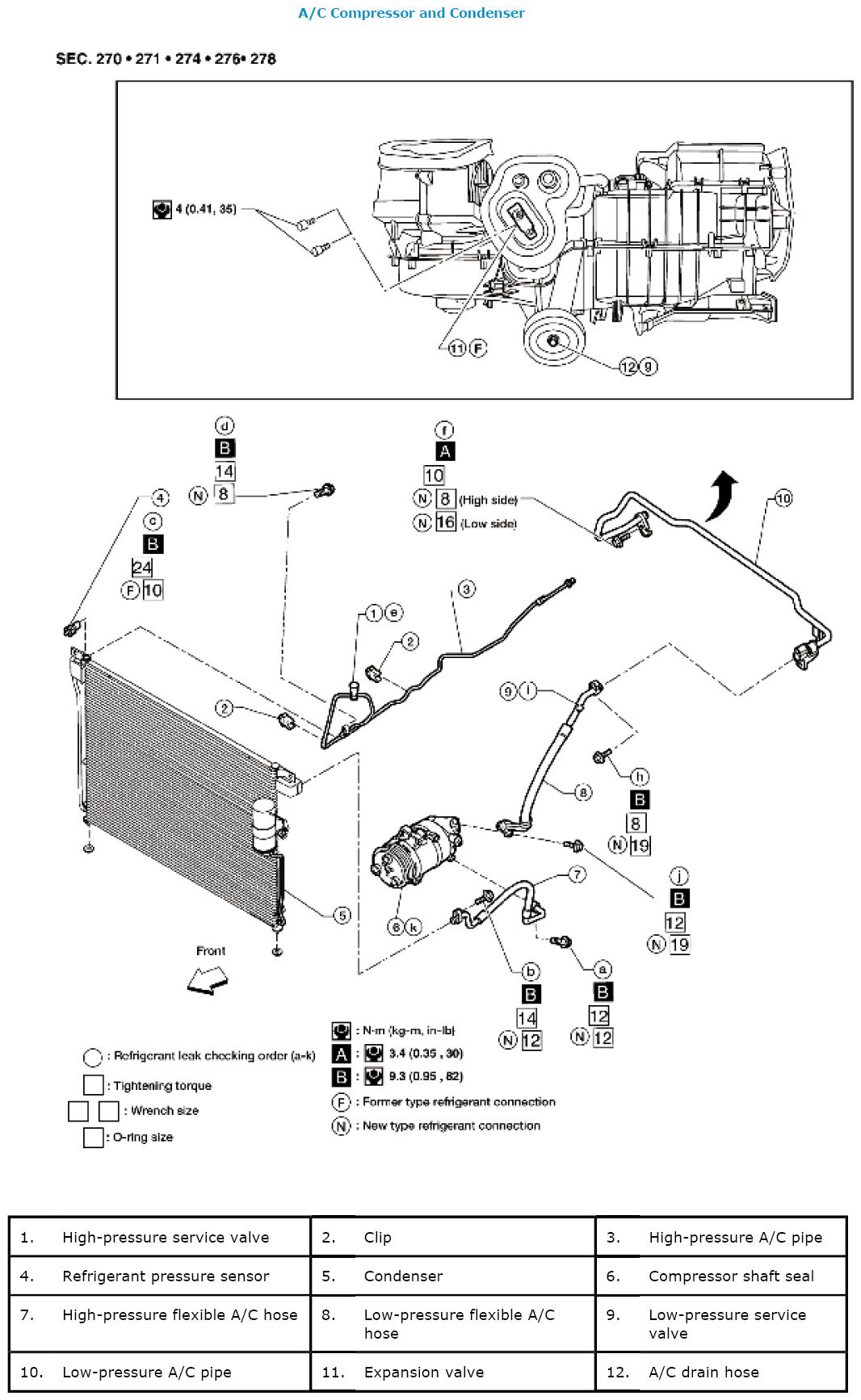

Fig 1: Exploded View Of A/C Compressor And Condenser
G06443244Courtesy of SUZUKI OF AMERICA CORP.
CAUTION: The new and former refrigerant connections use different O-ring configurations. Do not confuse O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or around the connection.
