Operation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch ON and wait 20 seconds.
  2. SRT status is indicated as shown blow.
    • ECM continues to illuminate MIL if all SRT codes are set.
    • ECM blinks MIL for about 10 seconds if all SRT codes are not set.

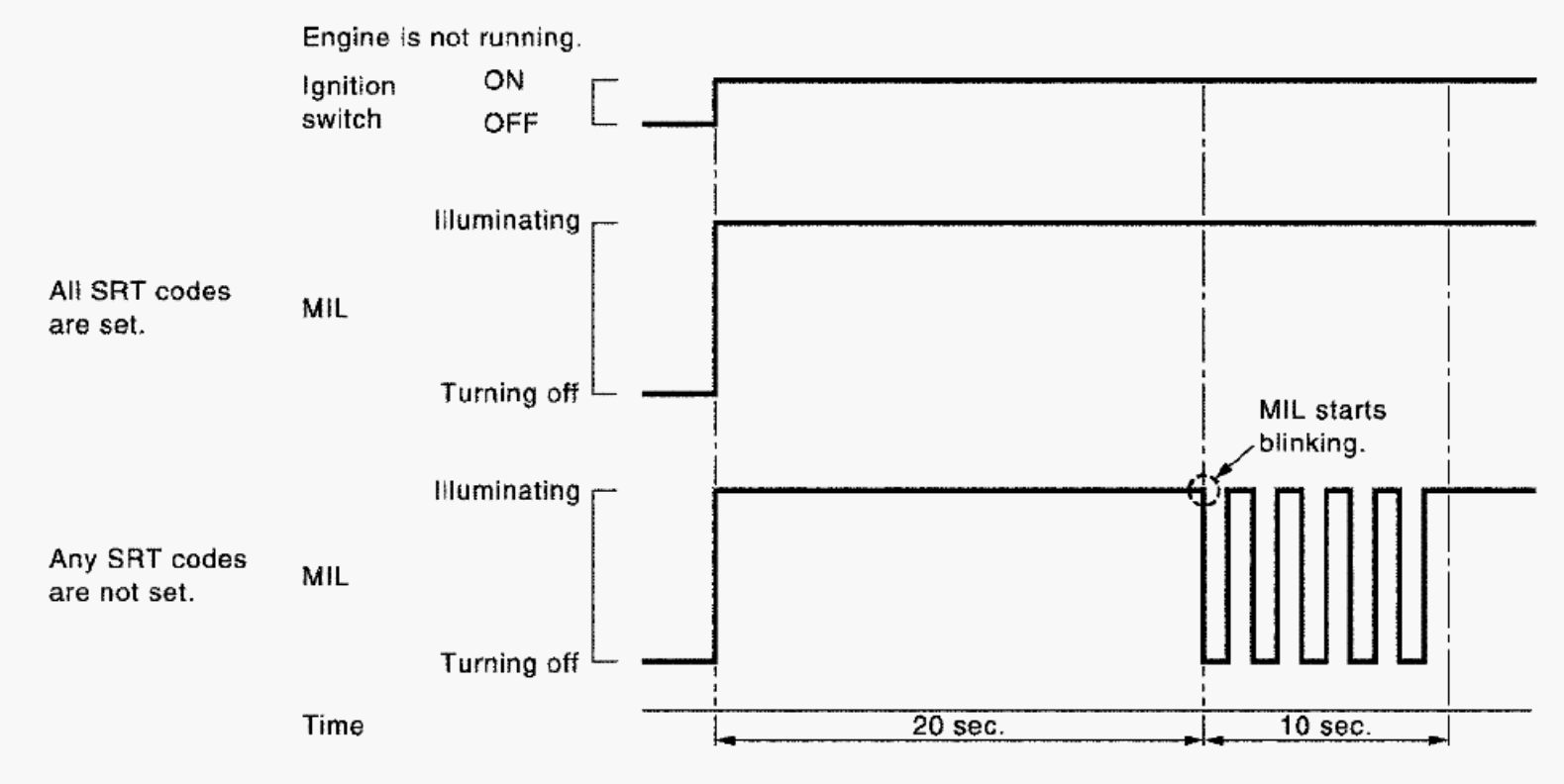

      • Fig 1: SRT Status Graph
      G00519766Courtesy of SUZUKI OF AMERICA CORP.
