Cooling System: Schematic

WARNING: This page is about a different variant/trim than selected.

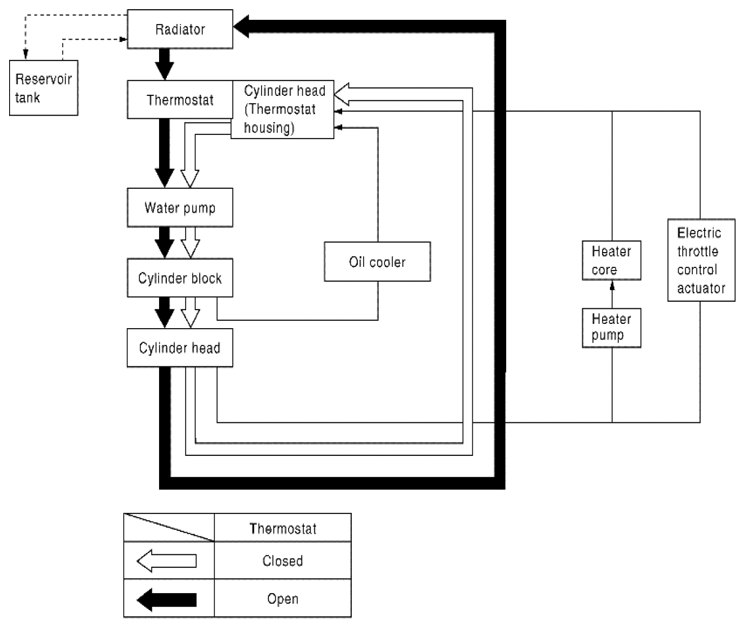

Fig 1: Cooling System Schematic
G06444523Courtesy of SUZUKI OF AMERICA CORP.
