Radiator: Exploded View

WARNING: This page is about a different variant/trim than selected.

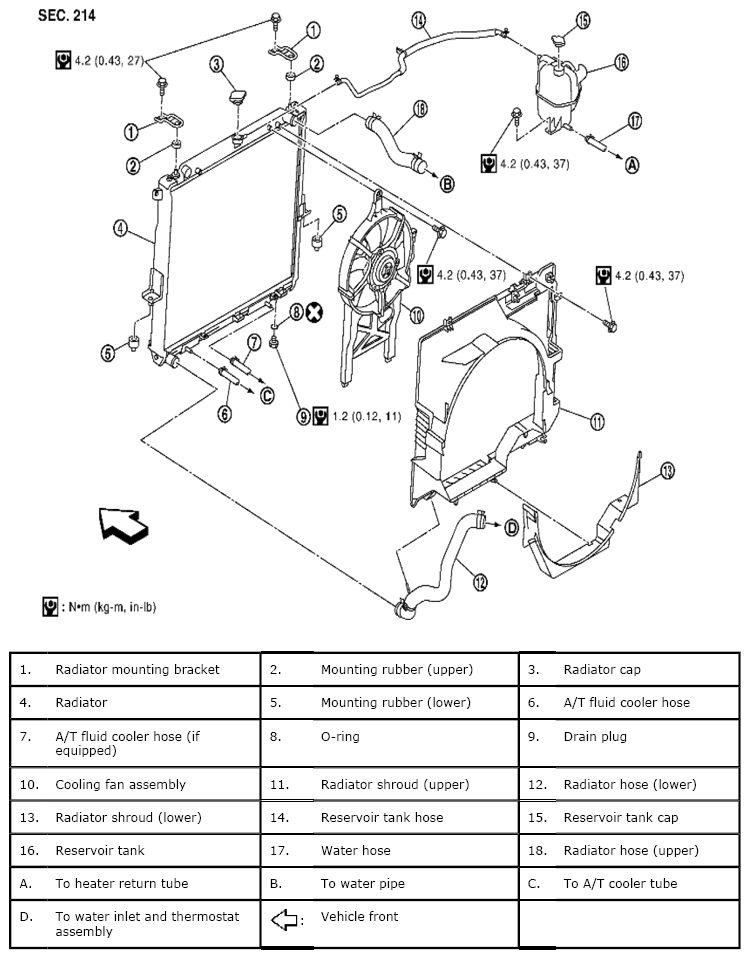

Fig 1: Exploded View Of Radiator With Torque Specifications
G06444524Courtesy of SUZUKI OF AMERICA CORP.
