Removal Of Liquid Gasket Sealing

WARNING: This page is about a different variant/trim than selected.

After removing nuts and bolts, separate the mating surface, using Tool and remove old liquid gasket sealing.
Tool number: KV10111100 (J-37228)

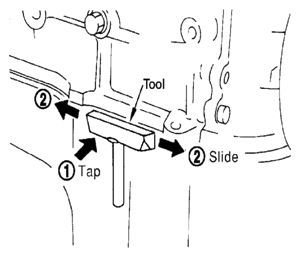

Fig 1: Separating Mating Surface Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Be careful not to damage the mating surfaces.
Tap (1) Tool to insert it, and then slide (2) it by tapping on the side as shown in illustration.
In areas where Tool is difficult to use, use plastic hammer to lightly tap the parts, to remove it.
