Section 5 (Engine Lubrication System - VQ40DE)
>>
Schematic and Routing Diagram
>>
Lubrication System: System Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lubrication System: System Chart
WARNING:
This page is about a different variant/trim than selected.

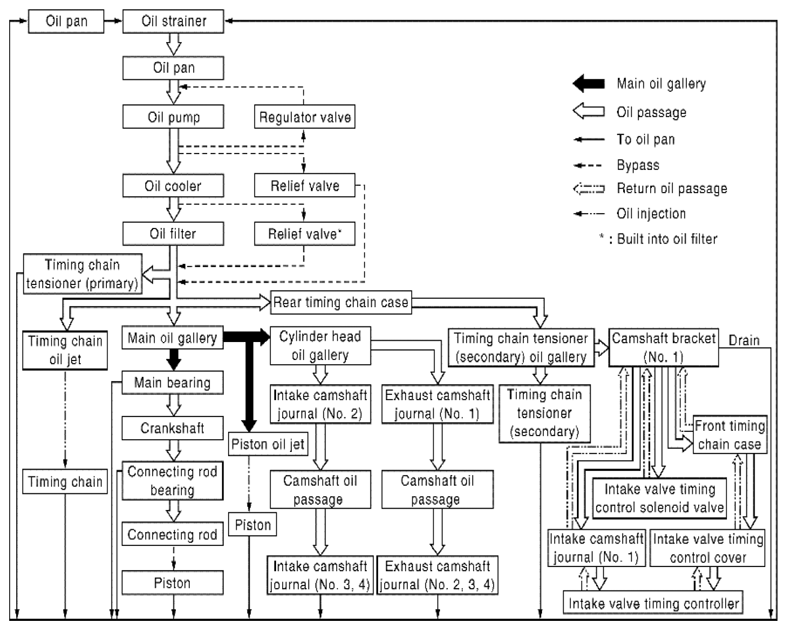

Fig 1: Lubrication System Chart
Courtesy of SUZUKI OF AMERICA CORP.
