Oil Pump: Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

NOTE: Install oil pump inner rotor with the groove facing the oil pump cover side. Install the oil pump outer rotor with the punch mark facing the oil pump cover side.

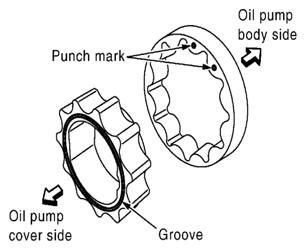

Fig 1: Identifying Installation Of Oil Pump Inner Rotor And Oil Pump Outer Rotor
G06444485Courtesy of SUZUKI OF AMERICA CORP.
