Oil Cooler: Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal, paying attention to the following.
- If replacement of the relief valve is necessary, install the new relief valve in place by tapping it in using suitable tool. CAUTION: Do not reuse relief valve.
- Confirm that no foreign objects are adhering to the sealing surfaces of the oil cooler and oil pan (upper).

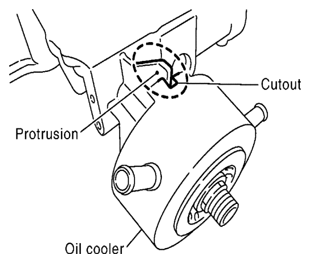

- Tighten connector bolt after aligning cutout on oil cooler with protrusion on oil pan (upper) side.
