Planetary Carrier: Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the snap ring.

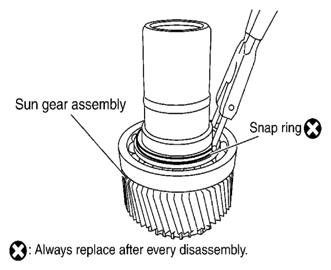

Fig 1: Removing Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Remove the sun gear assembly from the planetary carrier assembly using suitable tool.
Remove the snap ring from the sun gear assembly using suitable tool.

Fig 2: Removing Snap Ring From Sun Gear Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the carrier bearing from the sun gear using Tools.

Fig 3: Removing Carrier Bearing From Sun Gear Using Tools
Courtesy of SUZUKI OF AMERICA CORP.

Tool number A: ST35300000 (-)

B: ST30021000 (J-22912-01)
Remove the needle bearing from the sun gear using Tool.

Fig 4: Removing Needle Bearing From Sun Gear Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: ST33710000 (-)
Remove the metal bushing from the sun gear using Tools.

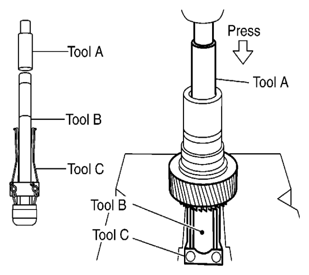

Fig 5: Removing Metal Bushing From Sun Gear Using Tools
Courtesy of SUZUKI OF AMERICA CORP.

Tool number A: ST33710000 (-)

B: ST35325000 (-)

C: ST33290001 (J-34286)
