Front Oil Seal: Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install the new front oil seal until it is flush with the end face of the front case using Tool.

Fig 1: Installing Front Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV38100500 (-)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.
Align the matching mark of the front drive shaft with the matching mark of the companion flange, then install the companion flange.

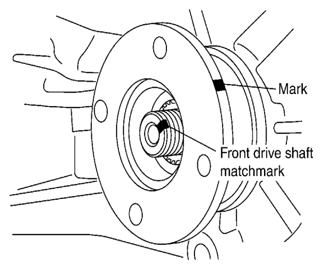

Fig 2: Identifying Matching Mark On Top Of Front Drive Shaft And Companion Flange
Courtesy of SUZUKI OF AMERICA CORP.
Install the new self-lock nut and tighten to the specified torque using Tool. Refer to [Transfer Assembly: Exploded View ].

Fig 3: Tightening Self-Lock Nut
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV40104000 (-)

CAUTION: Do not reuse self-lock nut.
Install the front propeller shaft. Refer to [PROPELLER SHAFT: REMOVAL AND INSTALLATION ]
Refill the transfer with fluid and check for fluid leakage and fluid level. Refer to [TRANSFER FLUID: INSPECTION ].
