Cylinder Head: Notes
WARNING: This page is about a different variant/trim than selected.
ITEM SPECIFICATION
| Unit: mm (in) |
| Items |
Standard |
Limit |
| Head surface distortion |
Less than 0.03 (0.0012) |
0.1 (0.004) |

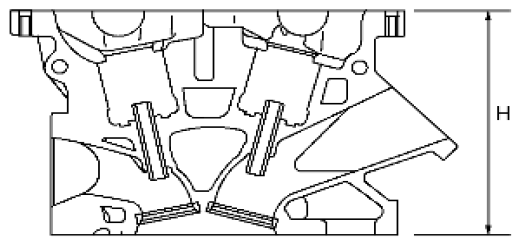

| Normal cylinder head height (H) |
126.3 - 126.5 (4.972 - 4.980) |
- |
| Cylinder head No. 1 camshaft journal bearing length |
27.360 - 27.385 (1.0772 - 1.0781) |
- |
 Courtesy of SUZUKI OF AMERICA CORP.
|
