Timing Chain Tensioner: Exploded View
WARNING:
This page is about a different variant/trim than selected.

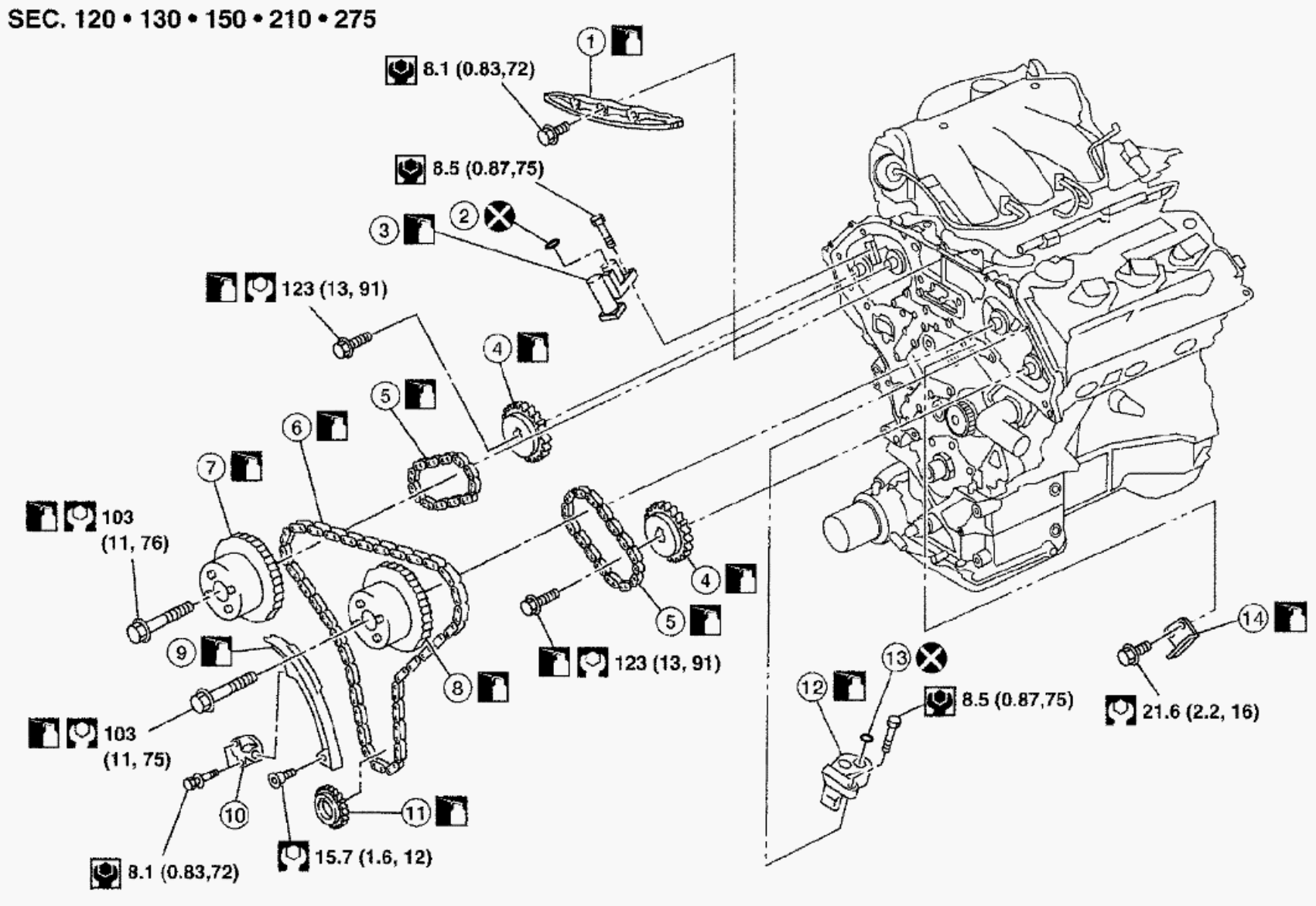

Fig 1: Exploded View Of Timing Chain Tensioner With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.

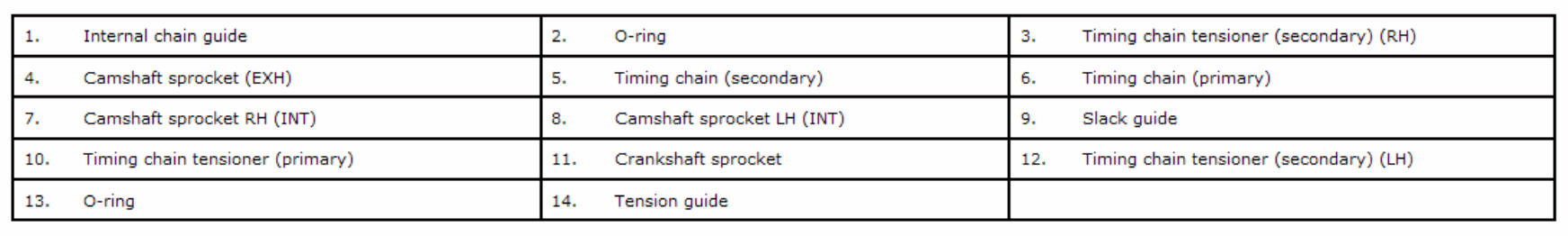

Fig 2: View Of Timing Chain Tensioner Callout Chart
Courtesy of SUZUKI OF AMERICA CORP.
