Intake Manifold: Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove intake manifold collector. Refer to [INTAKE MANIFOLD COLLECTOR: REMOVAL AND INSTALLATION ].
Remove fuel tube and fuel injector assembly. Refer to [FUEL INJECTOR AND FUEL TUBE: REMOVAL AND INSTALLATION [VQ40DE] ]
Loosen nuts and bolts with power tool in reverse order as shown to remove intake manifold.

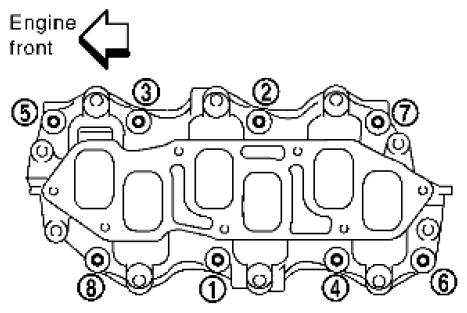

Fig 1: Intake Manifold Nuts And Bolts Loosening Sequence
Courtesy of SUZUKI OF AMERICA CORP.
Remove gaskets.
CAUTION: Cover engine openings to avoid entry of foreign materials.
