Intake Manifold

WARNING: This page is about a different variant/trim than selected.

If stud bolts were removed from cylinder head, install them and tighten to the specified torque.
Intake manifold studs : 10.8 N.m (1.1kg-m, 8 ft-lb)
Tighten all nuts and bolts to the specified torque in two or more steps in numerical order as shown.

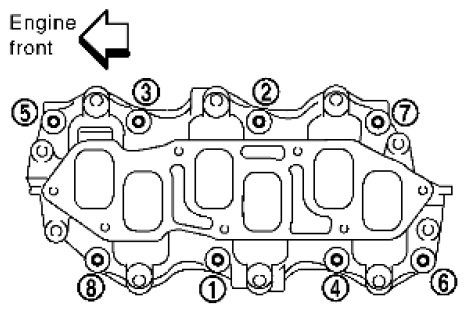

Fig 1: Intake Manifold Nuts And Bolts Tighten Sequence
Courtesy of SUZUKI OF AMERICA CORP.

Intake manifold bolt and nuts 1st step: 7.4 N.m (0.75 kg-m, 65 in-lb)

2nd step and after : 30.0 N.m (3.1 kg-m, 22 ft-lb)
Adjust neutral position steering angle sensor.
Erase CPU memory.
