Main Bearing Selection Table

WARNING: This page is about a different variant/trim than selected.

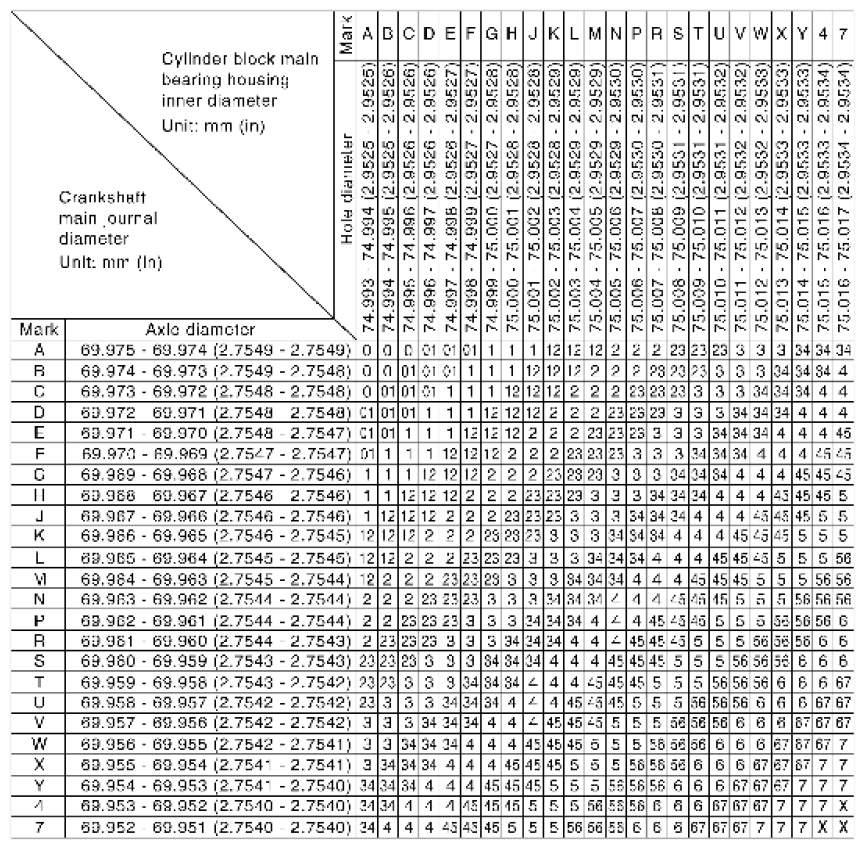

Fig 1: Main Bearing Selection Chart
G06441142Courtesy of SUZUKI OF AMERICA CORP.
