Undersize Bearings Usage Guide

WARNING: This page is about a different variant/trim than selected.

When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod bearings, use undersize (US) bearings.
When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
CAUTION: In grinding crankshaft pin to use undersize bearings, keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].

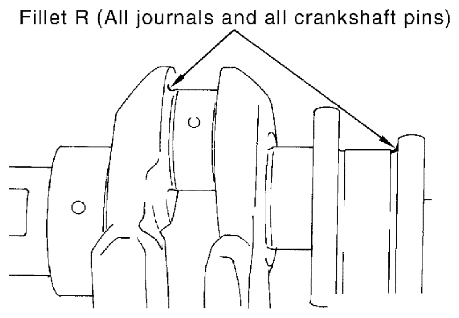

Fig 1: Identifying Crankshaft Pins And Journals
Courtesy of SUZUKI OF AMERICA CORP.
