Front Timing Chain Case: Exploded View

WARNING: This page is about a different variant/trim than selected.

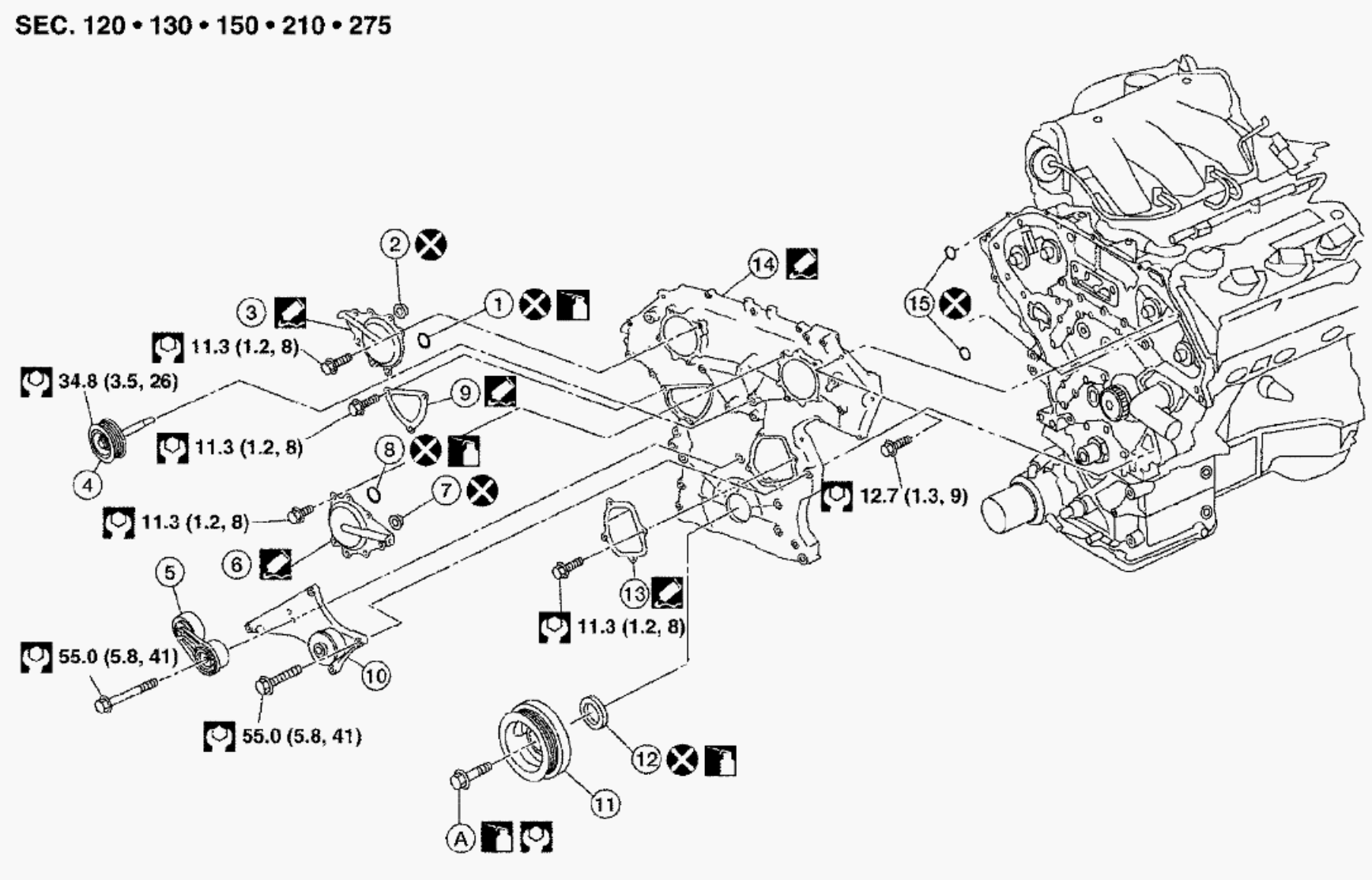

Fig 1: Exploded View Of Front Timing Chain Case With Torque Specifications (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

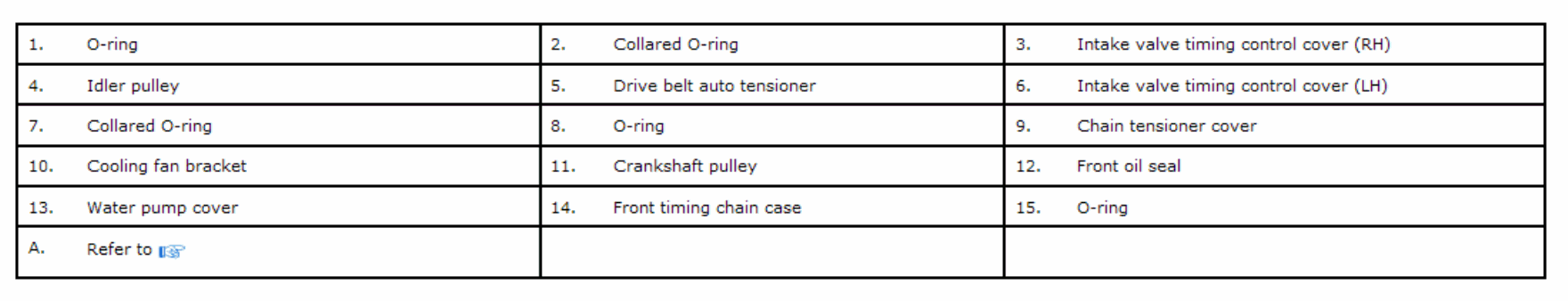

Fig 2: Exploded View Of Front Timing Chain Case With Torque Specifications (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
