Piston Pin Outer Diameter

WARNING: This page is about a different variant/trim than selected.

Measure the outer diameter of piston pin with micrometer.

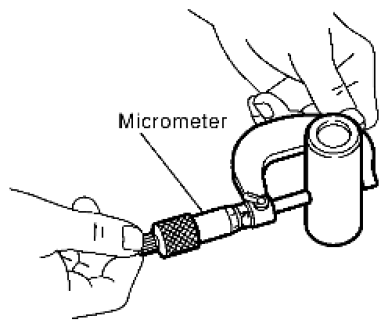

Fig 1: Measuring Outer Diameter Of Piston Pin With Micrometer

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 21.989 - 22.001 mm (0.8657 - 0.8662 in)
