Piston Pin Hole Diameter

WARNING: This page is about a different variant/trim than selected.

Measure the inner diameter of piston pin hole with inside micrometer.

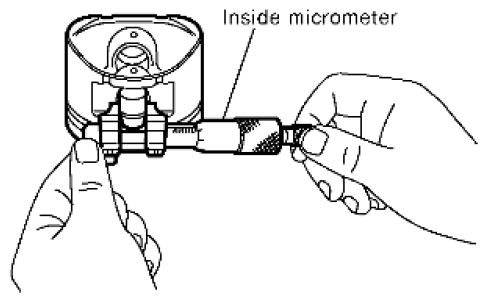

Fig 1: Measuring Inner Diameter Of Piston Pin Hole With Inside Micrometer

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 21.993 - 22.005 mm (0.8659 - 0.8663 in)
