Flywheel Deflection

WARNING: This page is about a different variant/trim than selected.

Measure the deflection of the flywheel contact surface to the clutch with a dial gauge.

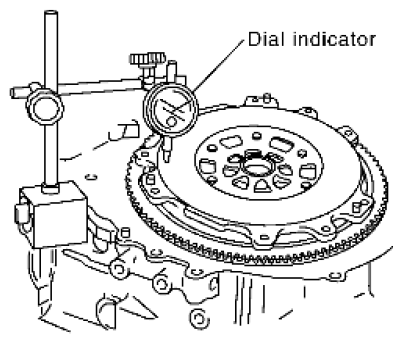

Fig 1: Measuring Deflection Of Flywheel Contact Surface To Clutch With Dial Gauge
Courtesy of SUZUKI OF AMERICA CORP.
Measure the runout at 210 mm (8.27 in) diameter.
Limit: 0.45 mm (0.0177 in) or less
When measured value exceeds the limit, replace the flywheel with a new one.
