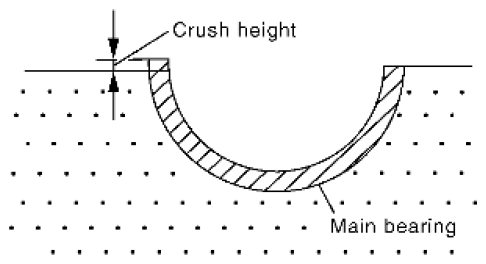

Crush Height Of Main Bearing
WARNING: This page is about a different variant/trim than selected.
- When lower cylinder block is removed after being tightened to the specified torque with main bearings installed, the tip end of bearing must protrude. Refer to
[ENGINE UNIT: DISASSEMBLY AND ASSEMBLY ] for the tightening procedure.
Standard: There must be crush height.
- If the standard is not met, replace main bearings.
