Crankshaft RUNOUT
WARNING: This page is about a different variant/trim than selected.

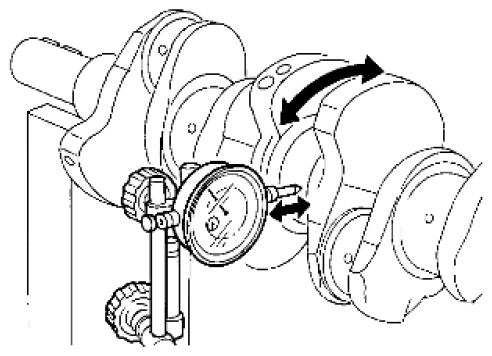

- Place V-block on precise flat table, and support the journals on the both end of crankshaft.
- Place dial indicator straight up on the No. 3 journal.
- While rotating crankshaft, read the movement of the pointer on dial indicator. (Total indicator reading)
Standard: Less than 0.05 mm (0.002 in)
Limit: 0.10 mm (0.0039 in)
- If it exceeds the limit, replace crankshaft.
