Connecting Rod Side Clearance
WARNING: This page is about a different variant/trim than selected.

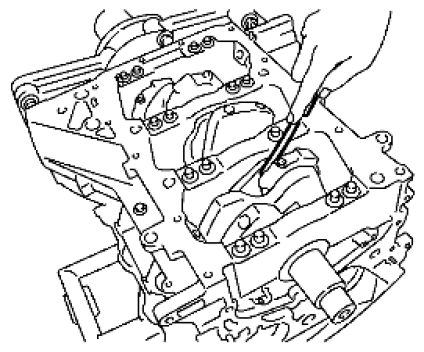

- Measure the side clearance between connecting rod and crankshaft arm with feeler gauge.
Courtesy of SUZUKI OF AMERICA CORP.
Standard: 0.20 - 0.35 mm (0.0079 - 0.0138 in)
Limit: 0.40 mm (0.0157 in)
- If the measured value exceeds the limit, replace connecting rod, and measure again. If it still exceeds the limit, replace crankshaft also.
