Piston Pin Diameter

WARNING: This page is about a different variant/trim than selected.

Measure diameter of piston pin using suitable tool.

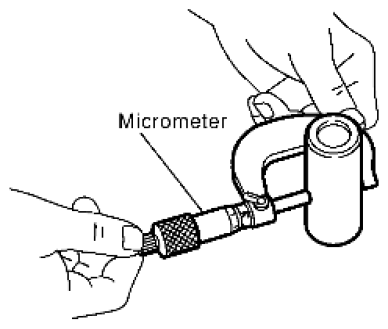

Fig 1: Measuring Diameter Of Piston Pin Using Suitable Tool

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 21.989 - 22.001 mm (0.8657 - 0.8662 in)
