Engine Unit: Dowel Pin Alignment: Removal

WARNING: This page is about a different variant/trim than selected.

Use Tool to lock the drive plate (A/T models) or flywheel (M/T models) and match mark (A) the drive plate or flywheel before removing the bolts.

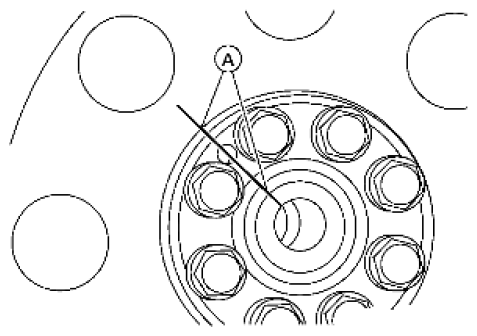

Fig 1: Identifying Match Mark On Drive Plate
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: - (J-48761)

CAUTION: Do not damage the ring gear teeth, or the signal plate teeth behind the ring gear, when setting Tool.
Remove drive plate (A/T models) or flywheel (M/T models).

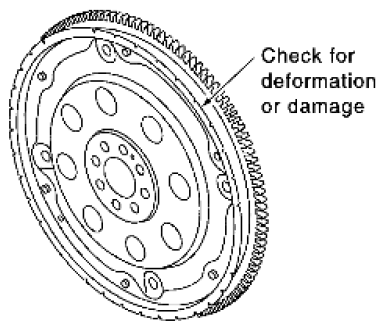

Fig 2: Checking Drive Plate Deformation And Damage
Courtesy of SUZUKI OF AMERICA CORP.
- Loosen the drive plate or flywheel bolts in a diagonal order.
  CAUTION:
  - Never place drive plate (A/T models) or flywheel (M/T models) with signal plate facing down.
  - When handling the signal plate, take care not to damage or scratch it.
  - Handle the signal plate in a manner that prevents it from becoming magnetized
