INSTALLATION (M/T models)

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal after the following.
- Be sure the dowel pin is installed in the crankshaft.
- When installing the flywheel (3) to the crankshaft (2), be sure to correctly align crankshaft side dowel pin (1) to the flywheel side dowel pin hole (A) as shown.

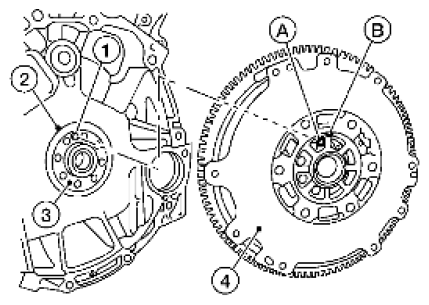

  Fig 1: Aligning Crankshaft Side Dowel Pin To Flywheel Side Dowel Pin Hole
  Courtesy of SUZUKI OF AMERICA CORP.
  - Oil seal (4)
- There is a locator mark (B) on the clutch cover side of the flywheel (4). Refer to this for ease of installation.

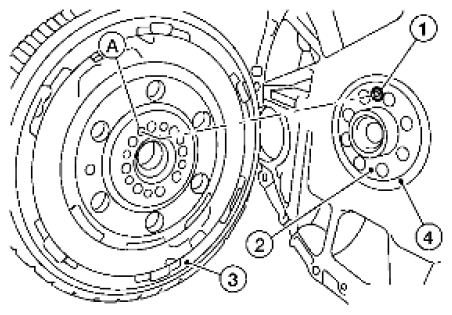

  Fig 2: Identifying Locator Mark On Clutch Cover Side
  Courtesy of SUZUKI OF AMERICA CORP.
  - Crankshaft dowel pin (1)
  - Oil seal (2)
  - Crankshaft (3)
  - Flywheel (4)
  - Dowel pin hole (A)
  - Dowel pin locator mark (B)
- Tighten the flywheel bolts in a diagonal pattern in two steps. Refer to [ENGINE UNIT: DISASSEMBLY AND ASSEMBLY ].
