Cylinder Head: Exploded View (1)

WARNING: This page is about a different variant/trim than selected.

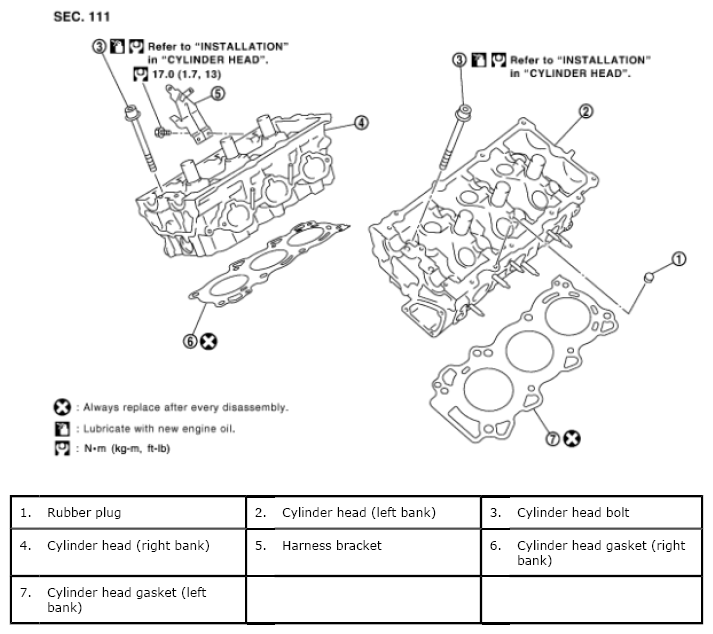

Fig 1: Exploded View Of Cylinder Head Components With Torque Specifications
G06441034Courtesy of SUZUKI OF AMERICA CORP.
