Cylinder Head: Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove spark plug.
Remove valve lifter.
- Identify installation positions, and store them without mixing them up.
Remove valve collet.

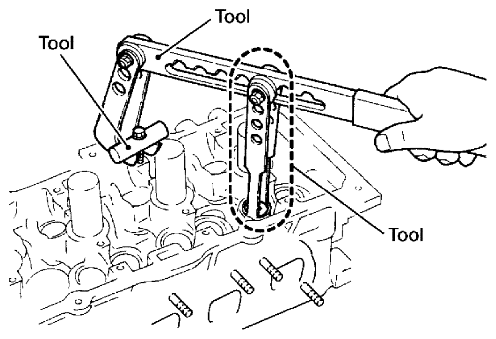

Fig 1: Removing Valve Collet
Courtesy of SUZUKI OF AMERICA CORP.
- Compress valve spring and remove valve collet with magnet hand using Tool.
  CAUTION: When working, take care not to damage valve lifter holes.

  Tool numbers: KV10109220 (-)

  : KV10116200 (J-26336-B)

  : KV10115900 (J-26336-20)
Remove valve spring retainer, valve spring and valve spring seat.
Push valve stem to combustion chamber side, and remove valve.
- Identify installation positions, and store them without mixing them up.
Remove valve oil seals using Tool.

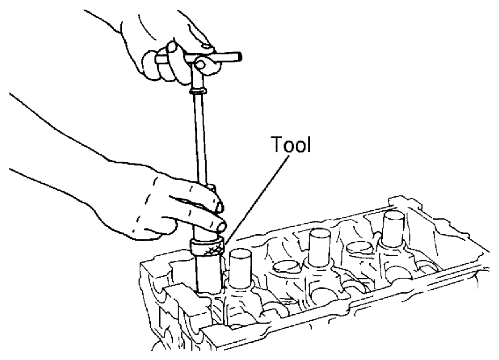

Fig 2: Removing Valve Oil Seals Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV10107902 (J-38959)
If valve seat must be replaced, refer to [CYLINDER HEAD: INSPECTION AFTER DISASSEMBLY ].
If valve guide must be replaced, refer to [CYLINDER HEAD: INSPECTION AFTER DISASSEMBLY ].
Remove spark plug tube, as necessary.
- Using pair of pliers, pull spark plug tube out of cylinder head.
  CAUTION:
  - Take care not to damage cylinder head.
  - Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless absolutely necessary.
