Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

WARNING: This page is about a different variant/trim than selected.

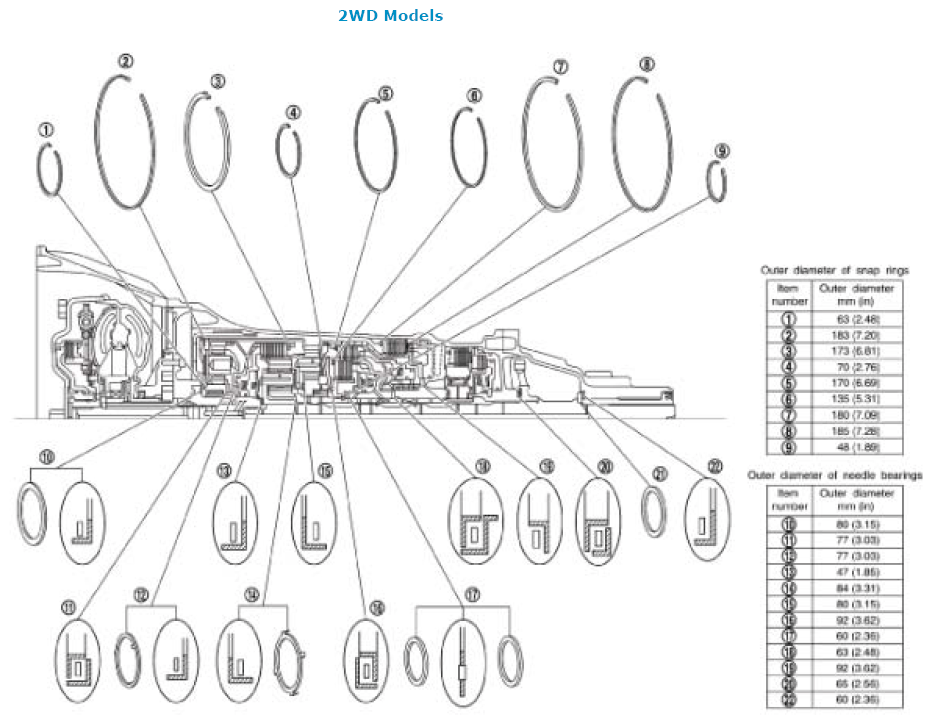

Fig 1: Identifying Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings Location - 2WD Models

Courtesy of SUZUKI OF AMERICA CORP.

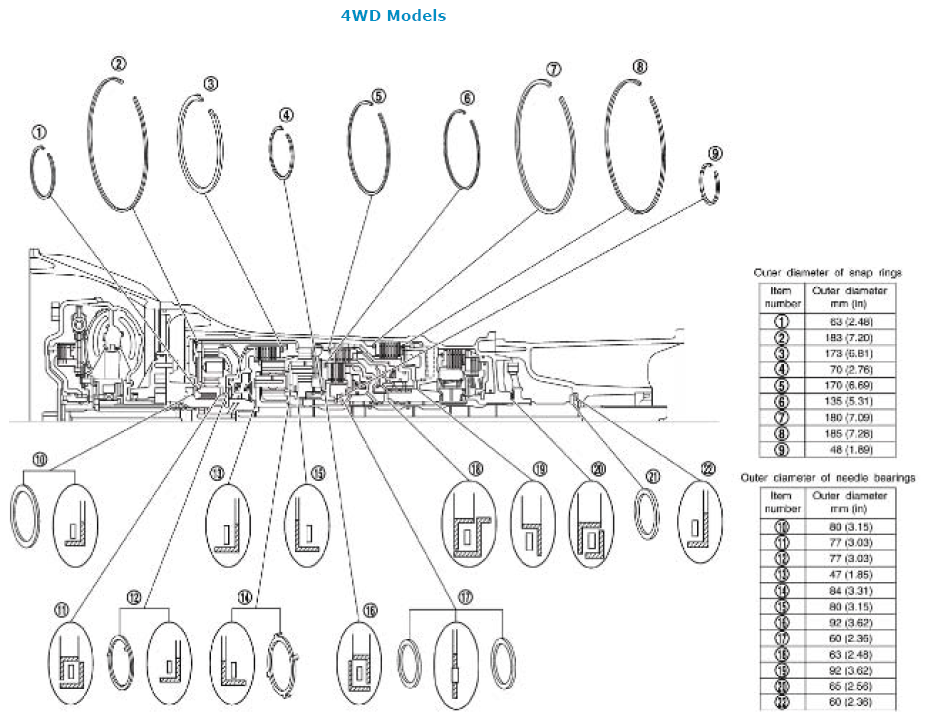

Fig 2: Identifying Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings Location - 4WD Models

Courtesy of SUZUKI OF AMERICA CORP.
