Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch Hub: Disassembly and Assembly: Components

WARNING: This page is about a different variant/trim than selected.

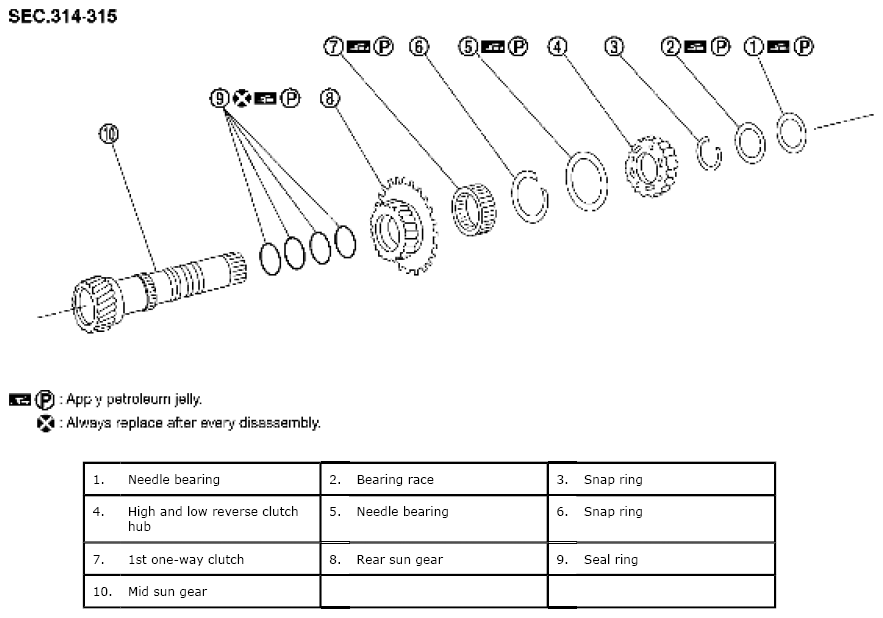

Fig 1: Identifying Mid Sun Gear, Rear Sun Gear, High And Low Reverse Clutch Hub Components

Courtesy of SUZUKI OF AMERICA CORP.
