High and Low Reverse Clutch: Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

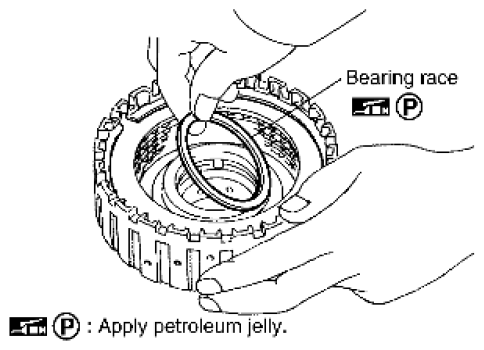

Remove bearing race from high and low reverse clutch drum.

Fig 1: Removing Bearing Race
Courtesy of SUZUKI OF AMERICA CORP.

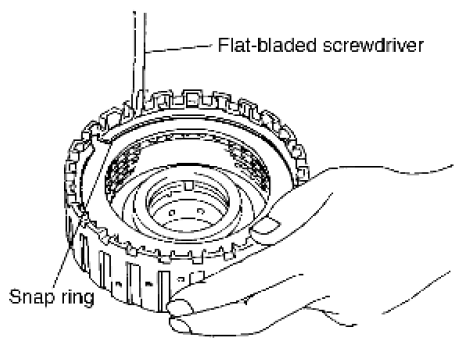

Remove snap ring from high and low reverse clutch drum using suitable tool.

Fig 2: Removing Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.
