Lock Pillar Upper Garnish Molding Replacement (Left Side)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

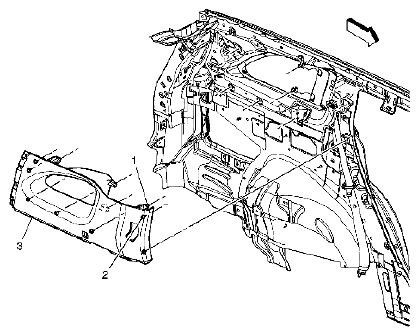

Fig 1: Identifying Lock Pillar Upper Garnish Molding & Clip

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove rear corner garnish molding. Refer to BODY REAR CORNER GARNISH MOLDING REPLACEMENT .
1	Lock Pillar Upper Garnish Molding Escutcheon
2	Lock Pillar Upper Garnish Molding Clip
3	Lock Pillar Upper Garnish Molding Retainer (Qty: 8)
4	Lock Pillar Upper Garnish Molding Assembly
