Spring Jounce Bumper Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

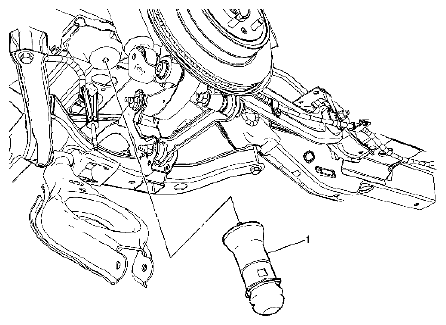

Fig 1: Identifying Spring Jounce Bumper

Courtesy of SUZUKI OF AMERICA CORP.

PRELIMINARY PROCEDURE REFERENCE

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the rear wheel and tire assembly. Refer to REMOVAL PROCEDURE . Remove the coil spring. Refer to REMOVAL PROCEDURE .
1	Spring Jounce Bumper CAUTION: Refer to FASTENER NOTICE . Tightening torque Tighten the nut to 58 N.m (43 lb ft).
