Adjustment Link Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

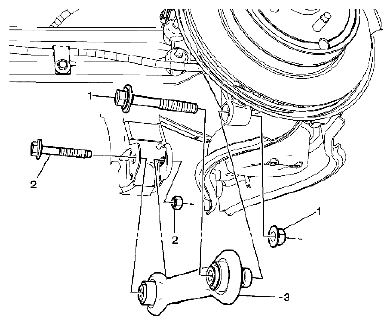

Fig 1: Identifying Axle Components

Courtesy of SUZUKI OF AMERICA CORP.

PRELIMINARY PROCEDURE REFERENCE

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the rear wheel and tire assembly. Refer to REMOVAL PROCEDURE .
1	Adjustment Link to Knuckle Bolt and Nut CAUTION: Refer to FASTENER NOTICE . Tightening torque 160 N.m (118 lb ft).
2	Adjustment Link to Support Bolt and Nut Torque 160 N.m (118 lb ft).
3	Adjustment Link Tip: Check rear alignment. Refer to MEASURING WHEEL ALIGNMENT .
