Engine Splash Shield Replacement - Left Side

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

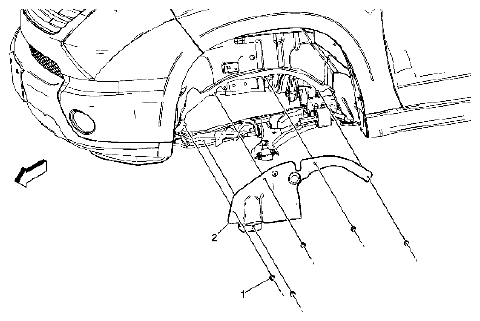

Fig 1: Identifying Engine Splash Shield - Left Side Components

Courtesy of SUZUKI OF AMERICA CORP.

ENGINE SPLASH SHIELD REFERENCE TABLE

Callout	Component Name
Preliminary Procedure Remove the front tire/wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1	Left Engine Splash Shield Plastic Retainers (Qty: 5)
2	Left Engine Splash Shield
