Rear Wheel Speed Sensor Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

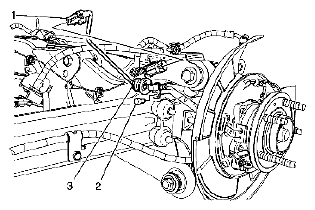

Fig 1: Identifying Rear Wheel Speed Sensor Components

Courtesy of SUZUKI OF AMERICA CORP.

BRAKE SYSTEM SCHEMATICS TABLE

Callout	Component Name
WARNING: Refer to BRAKE DUST CAUTION . Preliminary Procedures Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the tire and wheel. Refer to REMOVAL PROCEDURE . Remove the park brake shoes. Refer to PARK BRAKE SHOE REPLACEMENT .
1	Wheel Speed Sensor Electrical Connector
2	Wheel Speed Sensor Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque 8 N.m (71 lb in)
3	Wheel Speed Sensor Procedure Release the wheel speed sensor electrical harness grommet from the backing plate. Route the wheel speed sensor electrical harness through the backing plate.
