Instrument Cluster Schematics
WARNING:
This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

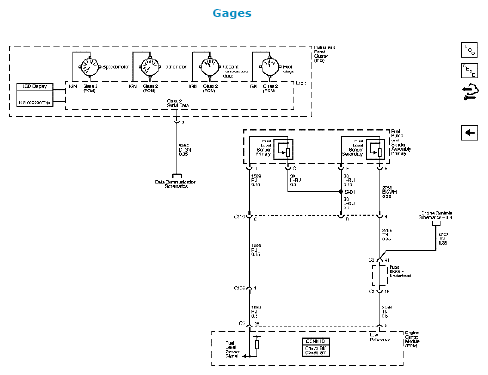

Fig 1: Identifying Instrument Cluster Indicators Schematics Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

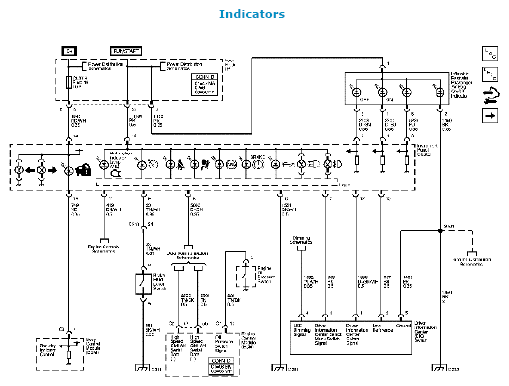

Fig 2: Identifying Instrument Cluster Indicators Schematics Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
