Instrument Panel Insulator Panel Replacement - Left Side

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

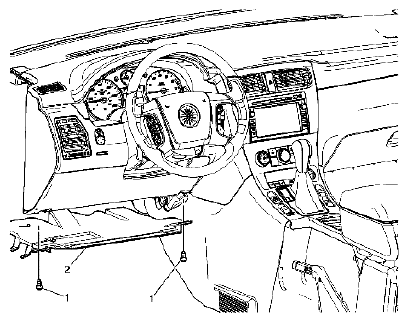

Fig 1: Identifying Instrument Panel Closeout/Insulator Panel Assembly & Screws (Left Side)

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL INSULATOR REFERENCE TABLE

Callout	Component Name
1	Instrument Panel Closeout/Insulator Panel Screws (Qty 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Instrument Panel Closeout/Insulator Panel Assembly.
