Instrument Panel Compartment Door Latch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

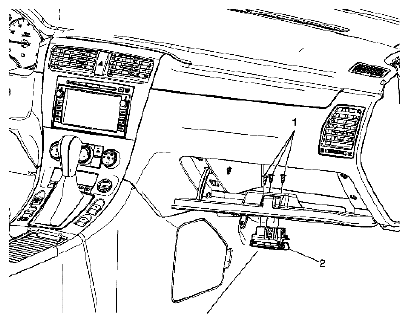

Fig 1: Identifying Instrument Panel Compartment Door Latch Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

INSTRUMENT PANEL COMPARTMENT DOOR LATCH REFERENCE TABLE

Callout	Component Name
1	Instrument Panel Compartment Latch Screws (Qty 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Instrument Panel Compartment Latch Assembly
