Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

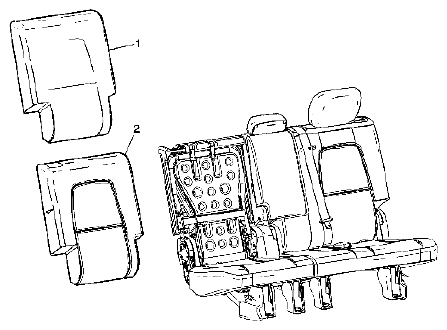

Fig 1: Identifying Rear Seat No. 1 Back Cushion Cover & Pad (40 Percent Seat)

Courtesy of SUZUKI OF AMERICA CORP.

REAR SEAT BACK CUSHION COVER AND PAD COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to REMOVAL PROCEDURE . Remove the rear seat recliner covers. Refer to REAR SEAT BACK RECLINER COVER REPLACEMENT (INNER) and REAR SEAT BACK RECLINER COVER REPLACEMENT (OUTER) . Remove the rear back release handle. Refer to REAR SEAT RECLINER HANDLE REPLACEMENT (REAR NO. 2) and REAR SEAT RECLINER HANDLE REPLACEMENT (REAR NO. 1) . Remove the rear seat should belt guide. Refer to GUIDE REPLACEMENT - REAR SEAT SHOULDER BELT . Remove the rear seat back filler panel. Refer to REAR SEAT BACK FILLER PANEL REPLACEMENT . Remove the rear seat head restraint. Refer to REAR SEAT HEAD RESTRAINT REPLACEMENT (OUTER) and REAR SEAT HEAD RESTRAINT REPLACEMENT (INNER) . Remove the rear seat head restraint guides. Refer to REAR SEAT HEAD RESTRAINT GUIDE REPLACEMENT (OUTER) and REAR SEAT HEAD RESTRAINT GUIDE REPLACEMENT (INNER) .
1	Rear Seat No. 1 Seat Back Cushion Cover Tip: finish sliding the seat back cover over the frame to remove from the seat back frame.
2	Rear Seat No. 1 Seat Back Cushion Pad
