Front Seat Back Cushion Cover and Cushion Pad Replacement (Non Fold Flat)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

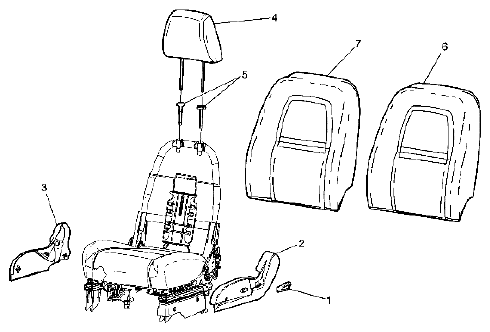

Fig 1: Identifying Front Seat Back Cushion Cover & Cushion Pad Components (Non Fold Flat)

Courtesy of SUZUKI OF AMERICA CORP.

FRONT SEAT BACK CUSHION COVER AND CUSHION PAD COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT) and FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
3	Front Seat Inner Adjuster Finish Panel Refer to FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (NON FOLD FLAT) and FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (FOLD FLAT) .
4	Front Seat Head Restraint Refer to FRONT SEAT HEAD RESTRAINT REPLACEMENT .
5	Front Seat Head Restraint Guides Disconnect the lower J-hook retainer from the seat back trim cover. Carefully pull up the trim cover, disengaging the hoop and loop retainers, until the headrest guides are exposed. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.
6	Front Seat Back Cushion Cover
7	Front Seat Back Cushion Pad Procedure Disconnect the electrical connector, if equipped, and feed through the seat back frame.
